PIPE COILER
We manufacture both automatic and semi-automatic type coilers to suit your requirement of winding soft and semi-rigid tubes and pipes ranging from 12 mm to 110 mm which are available in different models.

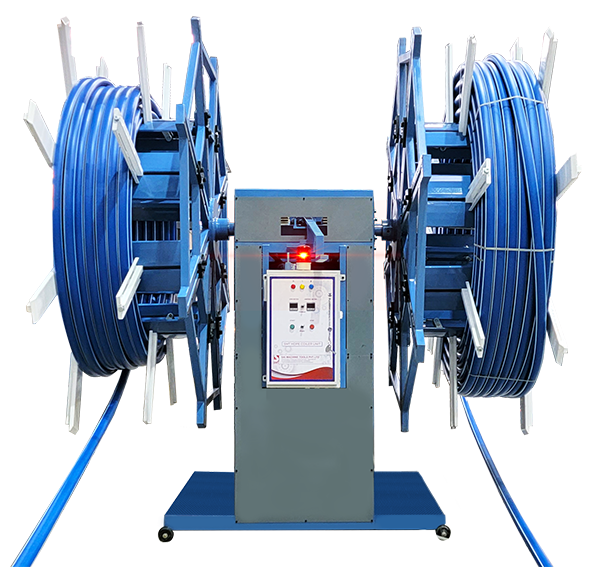

The semi-automatic coiler unit is equipped with proper clutch control, AC VFD Control, torque control, electronic length counter meter suitable to coil HDPE Pipe, MDPE Gas Pipe, PLB (Pre-lubricated) Telecom Ducts size ranging from 40 mm to 110 mm.

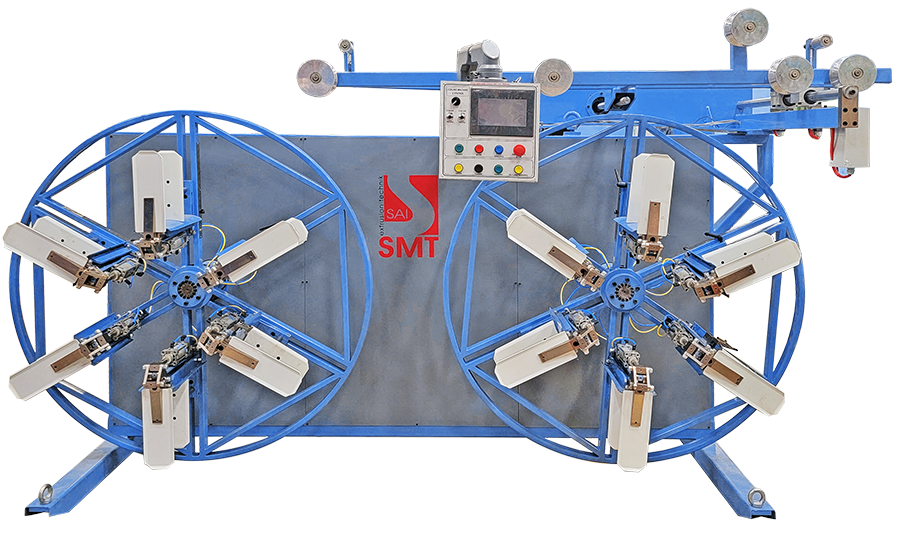

The automatic (Pneumatic) coiler is equipped with Pneumatic collapsible arm with PLC/HMI control suitable for LLDPE, HDPE, PPR & MDPE pipe winding with digital pitch control through smart intelligence torque drive for smart winding of tube/pipe Dia ranging from 20 mm to 63 mm and 32 mm to 110 mm.
FEATURES
- Ensures precise and consistent coiling of pipes
- Designed for high-volume production and efficiency
- Increases productivity by reducing manual labour
- Minimizes the risk of human error and improves safety
MODEL | PRODUCT CODE | PIPE RANGE (MM) | STATION | OPERATION | APPLICATION |
Manual Coiler | PC-154000 | 40 mm to 110 mm | 1-STATION | Manual | HDPE/MDPE Pipes |
SMT-CLR-50 | PC-93000 | 20 mm to 50 mm | 2-STATION | Semi-Auto | PLB/HDPE/MDPE Pipes |
SMT-CLR-110 | PC-85000 | 40 mm to 110 mm | 2-STATION | Semi-Auto | HDPE/MDPE Pipes |
SMT-KL-50 | PC-805700 | 20 mm to 50 mm | 2-STATION | Auto-Pneumatic | HDPE/LLDPE/MDPE Pipes |
SMT-KL-63 | PC-353000 | 20 mm to 63 mm | 2-STATION | Auto-Pneumatic | HDPE/LLDPE/MDPE Pipes |
SMT-KL-110 | PC-803300 | 32 mm to 110 mm | 2-STATION | Auto-Pneumatic | HDPE/LLDPE/MDPE Pipes |
SMT-50RAIN | PC-522000 | 20 mm to 50 mm | 3-STATION | Automatic | LLDPE RAIN PIPE |
SMT-KL-20 | PC-205000 | 12 mm to 32 mm | 2-STATION | Automatic | Round Drip Tube |
SMT-ATSC-20 | PC-410000 | 12 mm to 20 mm | 2-STATION | Automatic | Round Drip Tube |
